    Enclosure Animal Metal 316 Stainless Steel Wire Rope Mesh Zoo Mesh

    Ask Lasest Price
    Brand Name : QIJIE
    Model Number : Steel Wire Rope Mesh
    Certification : CE,SGS,ISO
    Payment Terms : 30%TT in advance, Balance before loading
    Supply Ability : 3000 m2/month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

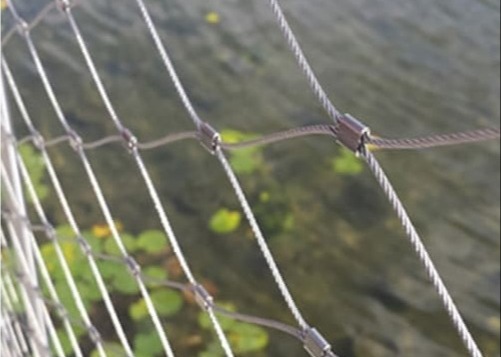

    Enclosure Animal Metal 316 Stainless Steel Wire Rope Mesh Zoo Mesh

    Product Description

    WIRE ROPE MESH (also called cable mesh) made form high quality stainless steel wire rope, with the features of extremely anti-corrosion and resistant to UV rays, has a long lifespan in the harsh environments. And its largest benefit is particular resilience and flexibility. Our rope mesh may in knotted, ferrule type, woven square, or square mesh with cruciate/cross clamps. They are all favored by fashion architects.


    Cable diameterMesh opening sizeNominal break
    inchmminchmmlbs.
    1/83.24x4102x1021600
    1/83.23x376x761600
    1/83.22x251x511600
    3/322.44x4102x102920
    3/322.43x376x76920
    3/322.42x251x51920
    5/642.03x376x76676
    5/642.02x251x51676
    5/642.01-1/2x 1-1/238x38676
    1/161.63x376x76480
    1/161.62x251x51480
    1/161.61-1/2x 1-1/238x38480
    1/161.61x125.4x25.4480
    3/641.21-1/2x 1-1/238x38270
    3/641.21x125.4x25.4270
    3/641.24/5x4/520x20270

    Main Featuers:

    1.The mesh is clipped to the cable.

    2.The hole size and diameter can be modified.
    3.It can be made to customer orders and statically tested – especially suitable for facades.
    4.High strength,strong toughness,free-angles curving and fold,easy for transportation and installment.
    5.Anti-corrosive,resist the rust,can be repeated use.
    6.Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
    7.This product can bear the heavy snow and the gale very much.
    8.Without toxic material,safety,environmental protection.


    Technology

    The type of stainless steel rope mesh

    1. Knotted mesh is a kind of plain weave,each warp wire rope crosses alternately above and below each weft wire rope.Warp and weft wire ropes generally have the same diameter.

    2.Ferruled mesh is of the same physical properties with the knotted mesh,the only difference is in the combination style,the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

    Flexible Stainless Steel Cable Mesh
    TypeKnotted cable meshFerrule cable mesh
    ImageCheep Price with stainless steel wire rope mesh netCheep Price with stainless steel wire rope mesh net
    CombinationInter-wovenSeamless ferrule
    Hole pattern90 degree diamond hole60 degree diamond hole
    MaterialSS304,316,316L,etc
    Cable diameter1 ~ 4 mm
    Cable structure7 × 7 (1.5 mm,2 mm or 2.5 mm),7 × 19 (3 mm,4 mm)
    Diamond size20 ~ 200 mm
    Mesh OrientationHorizontal,Vertical
    FeatureQuality material,High flexibility,Anti-corrosion,Longevity,Cost effectiveness,Easy
    Product Features

    Cheep Price with stainless steel wire rope mesh net

    Application

    Stainless steel wire rope mesh used for wide range of application: bird net, zoo, greenhouse, airport, fencing, decoration in hall, green wall series and so on. It is safe, light weight, long service life, high-strength, etc.

    Cheep Price with stainless steel wire rope mesh net
